Package Leak Test
Verify & Validate Every Seal with Our Package Leak Test!
Package leak testing is an essential quality control measure that assesses packaging materials’ ability to prevent leaks, ensuring their integrity and safeguarding contents from contamination. Whether in food, pharmaceuticals, or consumer goods, leak testing is crucial to avoid costly issues and uphold your brand’s reputation.

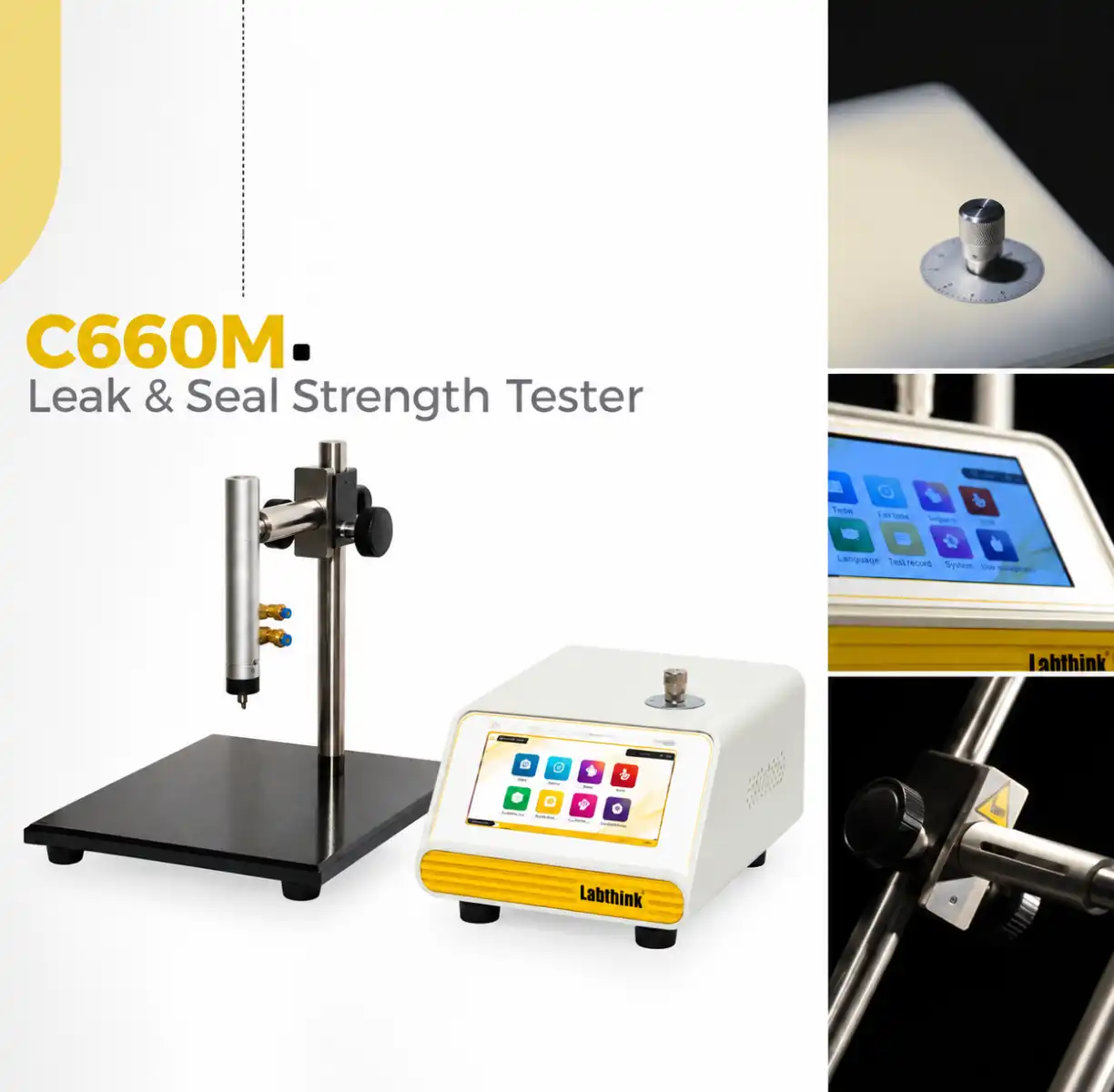

Leak and seal strength C660M
The Leak and Seal Strength C660M in packaging industry is professionally applicable for quantitatively determining seal strength, seal quality, burst pressure, seal integrity, compression resistance, torsion force, and joint/disengaging force of various flexible packages, aseptic packages, plastic tamper-evident closures, flexible tubes, caps, and other materials.
The C660M Leak and Seal Strength Tester offers multiple test modes and an automatic testing process. It features innovative real-time monitoring of gas inlet flow and a brand new patented intelligent touch operating system. Designed for precision and ease of use.
Submit Your Details to Download Brochure!
Features
- Multiple Test Modes: Burst, creep, creep-to-failure, and pressure retaining tests available.
- Dual Test Methods: Choose between restraint and unrestraint distension.
- Real-time Monitoring: Ensures uniform testing conditions with high-pressure gas inlet flow monitoring.
- Intelligent Touch Operating System: Industrial-grade touch screen, simplified interface, automatic data storage, and remote maintenance.

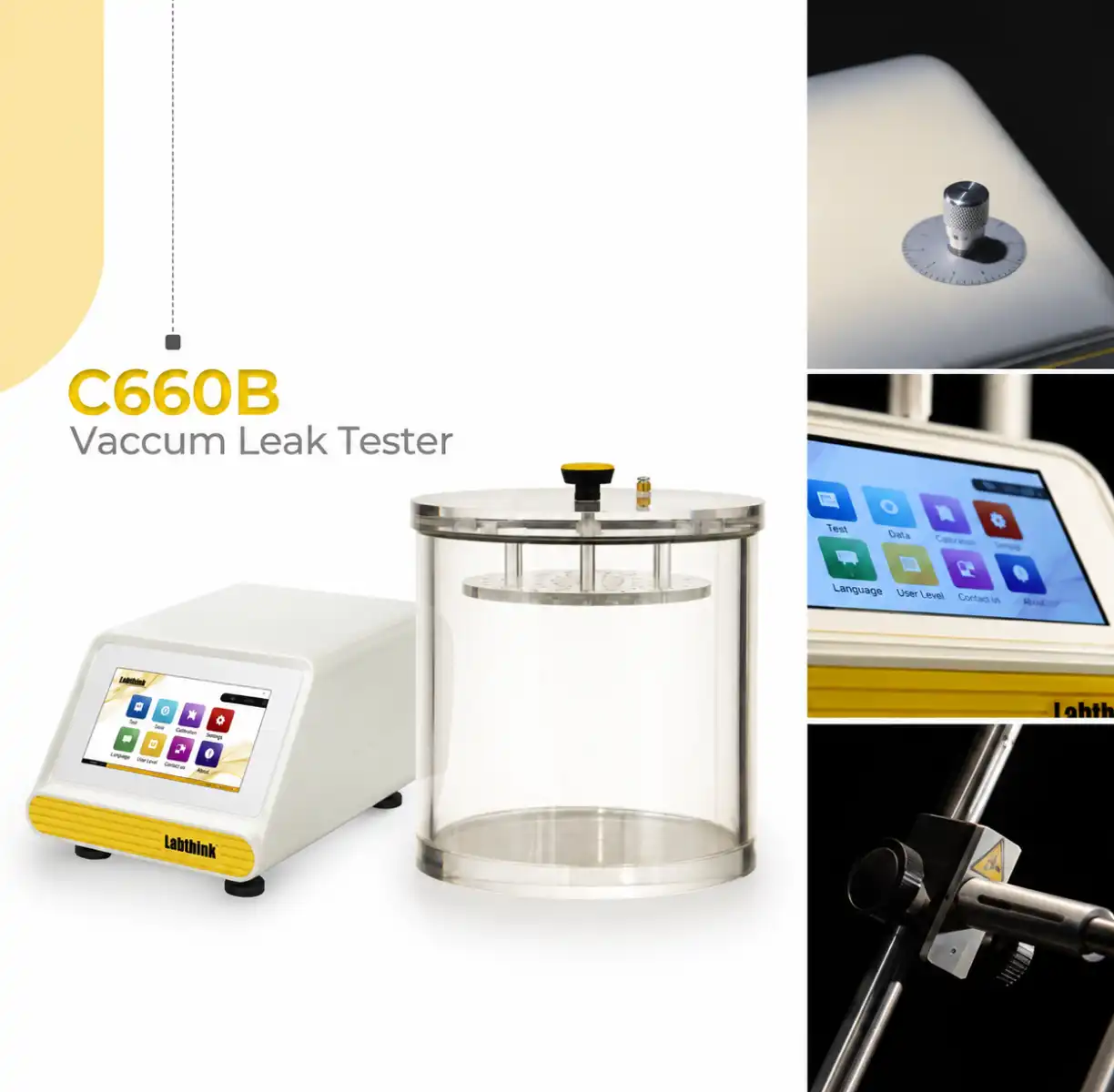

Vacuum Leak Tester C660B
C660B Vacuum Leak Tester is a testing instrument designed in accordance with ASTM D3078, specifically utilising the bubble emission method. It’s intended for determining leakage in various types of packaging, including those used for food, medical instruments, daily chemical products, automobiles, electronic components, stationery, and other industrial items. This device plays a crucial role in ensuring the integrity and quality of packaged goods.
The C660B Leak Tester features a Touch Screen Panel to set parameters for vacuum degree, retention time and Cyclic Tests ensuring accurate test data. It uses top-quality components from world-renowned brands for reliable performance. Specimens are tested under preset vacuum conditions with automatic constant pressure compensation.
Submit Your Details to Download Brochure!
Features
- Touch Screen Pannel: User Friendly UI enables ease of setting vacuum degree and vacuum retention time, Cyclic Tests, Pass Fail Function etc. This is to ensure precise and accurate test data.
- Top Quality Components: Incorporates top-quality parts and components sourced from world-renowned brands, ensuring reliable overall product performance and longevity.
- Automatic Compensation: Allows specimens to be tested in preset vacuum conditions through automatic compensation of constant pressure, enhancing efficiency and consistency of testing.

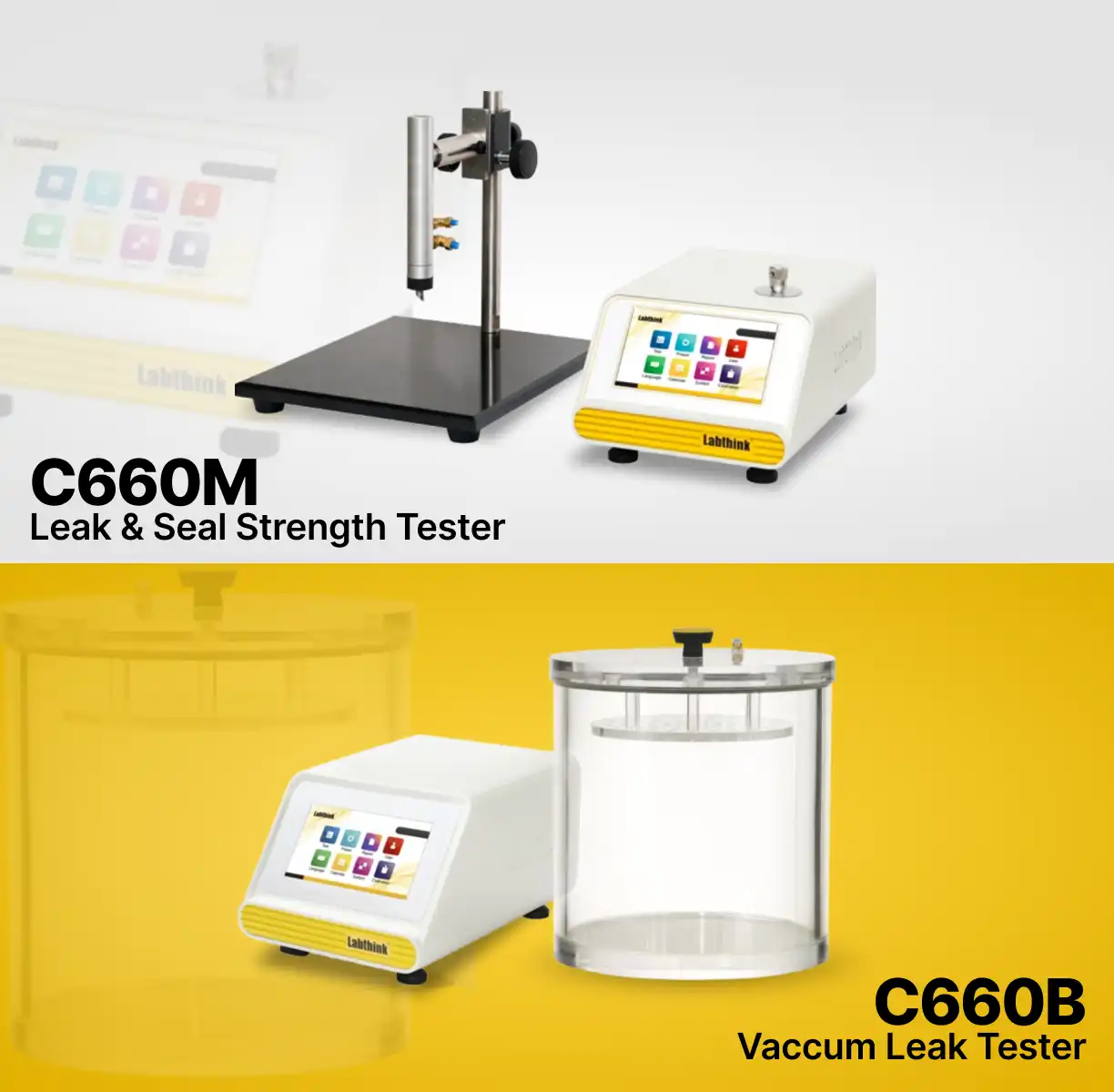

Technical Specification
← Swipe to compare both models →
| C660M | C660B | |
|---|---|---|
| Standard | ISO 11067, ASTM F1140 & ASTM F2054 | ASTM D3078 |
| Testing System | Leak and Seal Strength Detector | Vacuum Leak Detector |
| Pressure | Positive Pressure Method | Negative Pressure Method (Bubble) |
| Testing Range | 0–600 KPa / 0~87 Psi (Standard) | Vacuum Degree — 0–90 KPa / 0~13 Psi |
| Air Pressure | 6–8 Bar | 6–8 Bar |
| Port Size | 8 mm Tube Port | 8 mm Tube Port |
| Multiple Test Modes | Yes | Yes |
| Unit Conversion Feature | Yes | Yes |
| Touch Screen Control | 7 Inch LCD Touch Screen with 1200 Result Storage Feature | 7 Inch LCD Touch Screen with 1200 Result Storage Feature |
FAQ's
Frequently Asked Questions (FAQs) – Permeability Testing Instruments
What is a Package Leak Tester and why is it important for packaging quality control?
A Package Leak Tester is a precision instrument used to verify the seal integrity and leakage resistance of packaging materials. It detects weak or failed seals before products reach the market — preventing contamination, spoilage, product recalls, and regulatory non-compliance. It is essential for industries such as food, pharmaceuticals, medical devices, daily chemicals, and automotive components.
What are the two Package Leak Testers available from Flexitest and how do they differ?
Flexitest offers the C660M Leak and Seal Strength Tester and the C660B Vacuum Leak Tester, both manufactured by Labthink. The C660M uses the positive pressure method to quantitatively measure burst pressure, seal strength, and creep resistance. The C660B uses the negative pressure (vacuum/bubble emission) method to visually detect leaks by submerging the package in water under vacuum — ideal for qualitative leak detection across a wide range of packaging types.
What test modes does the C660M Leak and Seal Strength Tester support?
The C660M supports four test modes — burst test, creep test, creep-to-failure test, and pressure retaining test — with a standard test range of 0 to 600 KPa (extendable to 1.6 MPa optionally) and pressure accuracy of ±0.25% FS. It also supports both restrained and unrestrained distension methods, making it versatile for flexible pouches, aseptic packages, blister packs, tamper-evident closures, aerosol valves, and flexible tubes.
How does the C660B Vacuum Leak Tester work and what standard does it follow?
The C660B submerges the specimen in water inside a sealed vacuum chamber and evacuates the chamber to create a pressure differential. Any leak is identified by observing a steady stream of air bubbles escaping from the package, or by watching for expansion and recovery after vacuum release. It conforms to ASTM D3078 and GB/T 15171, and achieves a vacuum level of 0 to −90 KPa with automatic constant pressure compensation for consistent, repeatable results.
What types of packaging and materials can be tested using these instruments?
The C660M is applicable to flexible pouches, aluminium-plastic and paper-plastic laminates, aseptic packages, flexible tubes (cosmetics, food, pharmaceuticals), tamper-evident closures, aerosol valves, blister packs, and pressurised caps for beverages, edible oil, and food cans. The C660B tests glass, plastic, and metal bottles, pipes, cans, composite bags and boxes, pen refills, electronic components, and medical instruments — including packages subjected to drop or compression tests.
What international standards do the C660M and C660B comply with?
The C660M complies with ISO 11607-1, ISO 11607-2, ASTM F1140, ASTM F2054, and pharmaceutical packaging standards including YBB 00252005 and YBB 00162002. The C660B complies with ASTM D3078 and GB/T 15171. Both instruments are optionally configurable to meet GMP requirements, making them suitable for validated pharmaceutical and medical device manufacturing environments.
What data management and reporting features do the C660M and C660B offer?
Both instruments are equipped with an industrial-grade intelligent touch screen featuring a simplified interface, one-button operation, and remote upgrade capability. They store up to 1,200 test records with automatic data storage and power-failure memory. Optional features include a micro-printer, USB data transfer ports, multi-level user management with password login, PDF report export, and Labthink’s DataShield™ System for LIMS integration and secure data traceability.
What is the difference between the restrained and unrestrained distension methods on the C660M?
In restrained distension, the package is physically confined during pressurisation to simulate real-world conditions such as stacked or shelf-stored packaging. In unrestrained distension, the package is free to expand under pressure, reflecting burst resistance under open conditions. The C660M supports both methods, allowing users to select the approach that best matches their applicable test standard or end-use scenario.
How long can the C660M hold pressure, and what does this enable?
The C660M supports a pressure retaining time of 0.1 seconds up to 999,999.9 seconds (approximately 11.5 days). This enables extended creep and long-duration deformation monitoring tests — critical for validating packaging shelf-life performance, assessing seal fatigue under sustained load, and simulating transportation and storage stress conditions.
How can I purchase or get a demo of the C660M or C660B Package Leak Tester in India?
Flexitest is the authorised Labthink instrument supplier across India, with branches in Mumbai, Delhi, Ahmedabad, Vadodara, Pune, Hyderabad, and Chennai. They provide free installation and training, AMC support, live online troubleshooting, and customised solutions for your lab requirements. Reach out at sales@flexitest.in or call +91 93263 25135 to request an instant quote, product brochure, or live demonstration.
