Integrated Air Permeability Tester
Protect Product Integrity with Accurate Air Permeability, Puncture and Thickness Testing
Accurate measurement of air permeability, puncture strength, and material thickness is essential across industries – from battery separator films and packaging to filtration and paper.
Labthink’s C190H and C910H are engineered to deliver precise, repeatable results on a wide range of porous and flexible materials, including battery separator films, breathable membranes, and polymer products – helping manufacturers maintain quality and meet international test standards.
C910H Integrated air permeability tester
Advanced All-In-One Solution for Accurate Integrated Air permeability Tester for Battery Separator films
As EV manufacturers push for higher energy density and safer lithium-ion cells, battery separator film performance has become a critical checkpoint. The C910H delivers simultaneous measurement of air permeability (Gurley), puncture strength, and thickness of battery separator films in a single automated pass – giving manufacturers and QC labs a complete picture of separator quality without the complexity of multiple instruments
Submit Your Details to Download Brochure!
Features
Measures air permeability, puncture strength, and thickness simultaneously
Built for manufacturers who need fast, accurate, and repeatable separator testing without multiple instruments.
Contact-Type Thickness Measurement Method:
Cemented carbide spherical head with 0.1 µm resolution for long-term accuracy in high-throughput QC lines
Mechanical-Type Puncture Strength Measurement Method
Grade 0.5 force accuracy with servo-driven control and pneumatic clamping for consistent, reliable results
Integrated Measurement with Automatic Sample Feeding
Runs all three tests on a single strip with auto scanning and dual positioning for accurate, traceable high-volume QC
Intelligent Control & Reliable Performance
12.1″ Windows touchscreen with multi-level permissions, real-time ambient monitoring, and optional CFR 21 Part 11 and DataShield™ for regulated environments

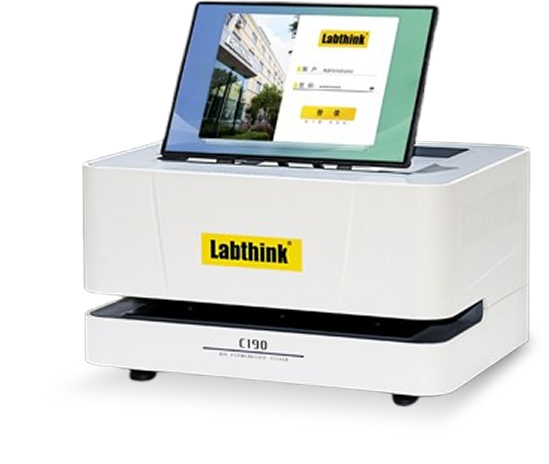

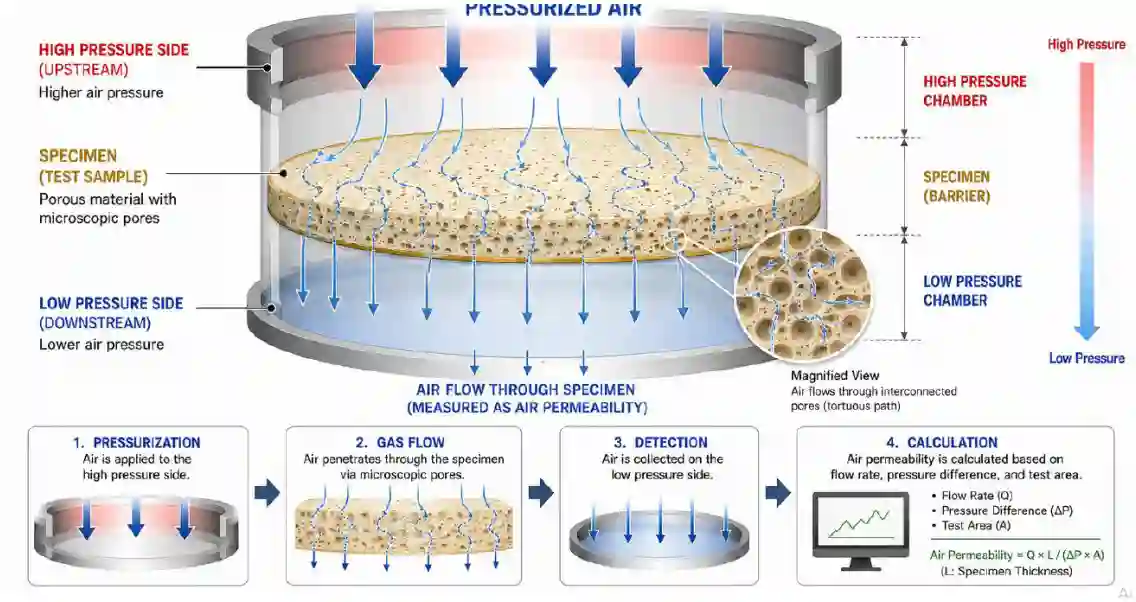

C190H air permeability tester
In the electric vehicle EV industry, safeguarding battery performance and longevity requires precise control over airflow through critical components. That’s exactly where the C190H Air Permeability Tester steps in. It helps engineers detect potential vulnerabilities in Battery Separator Films. A critical component in a Li-on Cell. A sub optimal Ionic Flow can be the cause of thermal Runway or short circuits in a Battery Pack.
Armed with accurate data on air permeability, manufacturers can fine-tune their material choices and designs to ensure an optimal balance between breathability and protection. The outcome is a safer, more durable EV battery system that delivers reliable performance on every road.
Submit Your Details to Download Brochure!
Features
- Gas volume passing through the specimen is fully-automatically determined, replacing the traditional manual sliding cylinder gas volume measurement method
- Three-independent-testing-cell design can accomplish tests for three specimens in a single test.
- A 12 inch tablet of Windows system is installed for more convenient control.
- Anti-pinch design and safer operation.
- Automatic detection of temperature and humidity of test environment automatic record of the test conditions.
- Pneumatic specimen clamping saves time and labor, with consistent clamping force and better sealing.
C910H & C190H Technical Specifications
| Parameter | Unit | C910H | C190H |
|---|---|---|---|
| Air Permeability | |||
| Measuring Range / Test Scope | s/100 mL | 30 ~ 1500 | 30 ~ 1500 |
| Measuring Range / Test Scope | µm/(Pa·s) | 0.1 ~ 4 | 0.1 ~ 4 |
| Volume Resolution | mL | 0.001 | 0.001 |
| Volume Precision / Accuracy | — | 1% | 1% |
| Pressure Range | kPa | 0 ~ 2 | 0 ~ 2 |
| Pressure Accuracy | kPa | 0.01 | 0.01 |
| Thickness Measurement | |||
| Thickness Measuring Range | mm | 0 ~ 2 | N/A |
| Resolution | µm | 0.1 | N/A |
| Repeatability | µm | 0.5 | N/A |
| Puncture Strength | |||
| Measuring Range | N | 0.1 ~ 50 | N/A |
| Resolution | N | 0.001 | N/A |
| Strength Value Precision | % | ±0.5 (Reading) | N/A |
| Test Speed | mm/min | 0–500 (Any integer) | N/A |
| Speed Accuracy | % | ±0.5 (Reading) | N/A |
| Measuring Interval | mm | 0 ~ 600 | N/A |
| Sample Feeding Speed | mm/s | 0 ~ 50 | N/A |
| Test Setup | |||
| No. of Test Cells | — | 1 set | 3 sets |
| Specimen / Sample Size | — | Strip format (auto feed) | ≥2" × 2" (6 × 6 cm) |
| Specimen Thickness | — | ≤80 mil (2 mm) | ≤120 mil (3 mm) |
| Test Area | — | 1 in² (6.4 cm²) | 1 in² (6.4 cm²) |
| Air Supply | |||
| Gas Specifications | — | Dry air (user-supplied) | Dry air (user-supplied) |
| Air Source Pressure | — | 72.5–101.5 PSI / 0.5–0.7 MPa | 87 PSI / 600 kPa |
| Port / Interface Size | — | Φ6 mm Polyurethane Pipe | Φ6 mm Polyurethane Pipe |
| Physical | |||
| Dimensions (H × W × D) | — | 29.9" × 17.7" × 21.7" (76×45×55 cm) | 23.6" × 19.6" × 27.5" (25×44×35 cm) |
| Power Supply | — | 120 VAC ±10% 60Hz / 220 VAC ±10% 50Hz | 120 VAC ±10% 60Hz / 220 VAC ±10% 50Hz |
| Net Weight | — | 187 lbs (85 kg) | 40 lbs (18 kg) |
| Extended Functions | |||
| GMP Computer System Requirements | — | Optional | N/A |
| DataShield™ Data Shield | — | Optional | N/A |
| CFR 21 Part 11 | — | Optional | N/A |
| Standard Configuration | |||
| C910H Includes | — | Mainframe, 12.1" Windows tablet, professional software, Φ6 mm polyurethane pipe | |
| C190H Includes | — | Mainframe, tablet, professional software, Φ6 mm polyurethane pipe | |
FAQ's
The C190H is a dedicated air permeability tester with a three-cell design for high-throughput Gurley testing. The C910H is an integrated system that measures air permeability, puncture strength, and thickness in a single automated pass – ideal when all three separator parameters need to be validated together.
Choose the C190H when your QC workflow focuses exclusively on air permeability and throughput is a priority – it tests three specimens simultaneously, reducing total test time to under 1 minute.
Choose the C910H when you need a complete separator characterisation – Gurley permeability, mechanical integrity (puncture), and dimensional uniformity (thickness) – in one instrument, saving floor space and operator time.
Yes. The C910H integrates all three measurements in one automated sequence on a single separator strip, eliminating the need for three separate instruments and multiple sample preparations.
Yes. Both instruments are specifically designed for battery separator testing. The C910H supports roll-to-roll QC workflows with its automatic sample feeding and strip sample format (up to 10 cm × 100 cm).
Yes. It also covers breathable films, related polymer products, and – with customisation – cigarette paper and other papers.
Both cover 30–1500 s/100 mL and 0.1–4 µm/(Pa·s), covering the full range of commercial battery separator grades.
Both instruments deliver pressure accuracy better than 0.01 kPa, ensuring consistent and repeatable results across test runs.
Puncture strength range: 0.1–50 N (resolution 0.001 N, accuracy ±0.5%). Thickness range: 0–2 mm (resolution 0.1 µm, repeatability 0.5 µm).
Yes. Both instruments require a user-supplied dry air source. The C910H operates at 0.5–0.7 MPa (72.5–101.5 PSI); the C190H at 600 kPa (87 PSI). An optional air compressor is available for both.
