Salt Spray Chamber for Automotive Parts & Component Testing

  1. Home
  2. Automotive
  3. Salt Spray Chamber for Automotive Parts & Component Testing

programmable 880T salt spray chamber

Flexitest manufactures and supplies programmable salt spray chambers for automotive component testing in India. The 880/T, 881/T and 882/T models provide controlled salt-fog exposure for evaluating fasteners, plated and painted parts, chassis components, trims and electrical connectors. Share your required test method, sample dimensions and acceptance criteria so we can confirm the appropriate chamber configuration.

For an overview of test methods and chamber selection, read our salt spray chamber guide.

Flexitest 880 t product banner
T Product banner Paint mobile

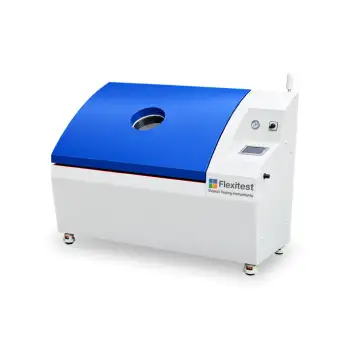

Flexitest 880T salt spray chamber

Automotive corrosion requirements may specify ASTM B117, ASTM B368 (CASS), ISO 9227 or a particular ASTM G85 annex. Share the test method and edition, required cycle, sample dimensions and acceptance criteria so Flexitest can confirm the appropriate chamber configuration for your components.

Features

  1. Standards-based chamber selection: Specify ASTM B117, ASTM B368 (CASS), the required ISO 9227 method or ASTM G85 annex. Ask Flexitest to confirm the configuration for your procedure. ASTM B380 uses the Corrodkote procedure; DIN 50021 is a withdrawn legacy standard.
  2. Heavy-duty sample rack: Three layers with corrosion-resistant rods, V-shaped glass-fibre brackets (20° ± 5°) and a mesh base plate for large parts. Uniform load capacity of more than 200 kg.
  3. Programmable spray/pause operation: Program spray and pause periods of up to 99 h 59 min each, or run continuous fog up to 999.9 hours for specified exposure periods.
  4. Accurate CASS temperatures: Working room reaches 50 °C and the saturated air barrel reaches 63 °C in under 45 minutes each, with temperature stability of ≤ ±0.5 °C.
  5. No nozzle clogging on long runs: A peristaltic pump feeds salt solution from an external large tank, avoiding siphon-nozzle crystallisation and keeping fog fall-out steady for 1,000-hour tests.
  6. Programmable TEMI 880 touch screen: 7-inch 800 × 480 colour display with program, fixed-value and timed start/stop modes, so tests start and stop without an operator present.
  7. Traceable test records: Logs set values, measured values and time for up to 360 days at a 2-minute interval. Transfer programs and data by USB, or network up to 16 chambers over RS232 for central monitoring.

Salt Spray Chamber

Programmable Corrosion Test System — Automotive Grade

Technical information for the Flexitest 880/T programmable salt spray chamber. Confirm the model and configuration against your required test method before ordering.

Specification Model 880T Details
Sample Rack & Loading
Rack LayersThree layers, corrosion-resistant rods
Rack BracketsV-shaped glass-fibre, 20° ± 5° angle
BaseMesh base plate for large parts
Load Capacity> 200 kg, uniformly distributed
Temperature & Stability
CASS Working Room Temp50 °C — reached in under 45 min
CASS Saturated Air Barrel Temp63 °C — reached in under 45 min
Temperature Stability≤ ±0.5 °C
Spray & Fog Control
Interval Fog CycleSpray and pause — each up to 99 h 59 min
Continuous Fog DurationUp to 999.9 hours
Salt Solution FeedPeristaltic pump from external large tank
Test Method Requirements
Neutral Salt Spray (NSS)ASTM B117 / ISO 9227 NSS — confirm the specified configuration with Flexitest.
CASS TestASTM B368 / ISO 9227 CASS — confirm the required method and configuration.
Modified Cyclic Salt FogASTM G85 — specify the annex and cycle; configuration review required.
Corrodkote TestASTM B380 — Corrodkote procedure; confirm the required configuration.
DIN StandardDIN 50021 — withdrawn legacy standard; confirm the contractual edition and procedure.
Typical Automotive Applications
FastenersZinc and zinc-nickel plated fasteners
Body PartsE-coated and painted body panels
TrimDecorative chrome trims
AluminiumAnodised aluminium components
Chassis & BrakesBrake parts, chassis components, electrical connectors
Test Standards and Configuration Review
Standard Test Type Selection Requirement
ASTM B117Neutral salt spray / salt-fog apparatusSpecify exposure and acceptance criteria in the product or customer specification.
ASTM B368Copper-accelerated acetic acid-salt spray (CASS)Confirm the required CASS procedure and chamber configuration.
ASTM G85Modified salt spray methodsFive distinct annexes; specify the required annex and cycle.
ASTM B380Corrodkote procedureConfirm the procedure and chamber configuration; not a blanket salt-fog capability claim.
ISO 9227NSS / AASS / CASSSpecify the method and applicable product or customer requirements.
DIN 50021Withdrawn legacy standardIf contractually specified, confirm the required edition and procedure.
Model 880T Salt Spray Chamber
Programmable Salt Spray Chamber
Sample Rack & Loading
Rack Layers3 layers, corrosion-resistant rods
Rack BracketsV-shaped glass-fibre, 20° ± 5°
Load Capacity> 200 kg
Temperature
CASS Room Temp50 °C (<45 min)
CASS Barrel Temp63 °C (<45 min)
Stability≤ ±0.5 °C
Spray & Fog
Interval Fog CycleUp to 99 h 59 min each
Continuous FogUp to 999.9 hours
Salt Solution FeedPeristaltic pump
Test Method Requirements
ASTM B117NSS — confirm specified configuration
ASTM B368CASS — confirm method and configuration
ASTM G85Specify annex and cycle; configuration review
ASTM B380Corrodkote — confirm procedure and configuration
ISO 9227Specify NSS, AASS or CASS; confirm configuration
DIN 50021Withdrawn; confirm contractual edition and procedure
Automotive Applications
FastenersZinc / zinc-nickel plated
Body PartsE-coated & painted panels
TrimDecorative chrome trims
AluminiumAnodised components
Chassis & BrakesBrake parts, connectors
Test Standards and Configuration Review
ASTM B117NSS
Salt-fog apparatus and operation. Exposure and acceptance criteria come from the product or customer specification.
ASTM B368CASS
Copper-accelerated acetic acid-salt spray (CASS). Confirm the required procedure and chamber configuration.
ASTM G85Annex-specific
Five distinct modified salt spray methods. Specify the required ASTM G85 annex and cycle so Flexitest can confirm the configuration.
ASTM B380Corrodkote
Corrodkote procedure for decorative electrodeposited coatings. Confirm the required procedure and chamber configuration.
ISO 9227NSS/AASS/CASS
Includes NSS, AASS and CASS. Specify the method and the applicable product or customer requirements.
DIN 50021Legacy
DIN 50021 is a withdrawn legacy standard. If a customer specification cites it, confirm the required edition and procedure.

Need help selecting the right Salt Spray Chamber?

Share your test standard, sample size and cycle requirement — we'll recommend the right model for your corrosion testing lab.

FAQs

 Frequently Asked Questions (FAQs) – Salt Spray Chamber

ASTM B117 covers salt-fog apparatus and operation. ISO 9227 includes NSS, AASS and CASS methods, and ASTM B368 covers CASS testing. For ASTM G85, specify the required annex and cycle. Follow the applicable product or customer specification, and ask Flexitest to confirm the required chamber configuration.

Test duration and acceptance criteria come from the applicable product or customer specification, including the coating and the corrosion endpoint being assessed. ASTM B117 does not prescribe a universal exposure period. Salt-spray hours should not be converted directly into years of service.

Yes. The mesh plate on the lower rack layer takes large parts, and the rack is rated for more than 200 kg of uniformly distributed load.

The Flexitest brochure specifies programmable spray and pause periods of up to 99 h 59 min each. Spray/pause programming alone does not establish support for every cyclic corrosion method. For ASTM G85, provide the required annex and cycle so Flexitest can confirm the appropriate chamber configuration, including any required humidity, drying or gas-exposure steps.

Yes. The controller stores up to 360 days of temperature and test data, which you can export by USB or view on a PC through the RS232 link.
